Environmental Sensing

Escherlogic provides solutions for environmental measurement of temperature, relative humidity as well as other type of sensors supported by our RF V5.0 wireless platform and secure on-line management system (SeNSoRNET).  We can offer NIST traceability for temperature that can support your most demanding environmental requirements.

RFTX5 RF Sensor Platform

This device is the workhorse of the Escherlogic wireless sensing platform. It requires only a single AA battery to power itself and up to 2 sensors.  If you don’t require traceability, the RFTX5 provides high quality on-board temperature sensing, so there is no need to plug in an external sensor.  It has an exceptional RF range of up to and beyond 1000m in clear space.  When it can not connect with an RFAP2 Access Point, it is capable of logging many 1000′s of data samples.  This allows you to use it for collecting data during shipment.  As soon as an RFAP2 connection is established again the RFTX5 will upload any and all logged data for seamless data continuity.

RFTX5 RF Sensor Platform

The low-cost high performance RFTX5 RF Sensor Platform can support up to 2 sensors of any type or combination and log data during RF link outages.

RFTX5 can be simply mounted in most any indoor or outdoor environment.

RFTX5 can be simply mounted in most any indoor or outdoor environment.



Insertable Environment Sensors

Escherlogic not only designs and manufactures our own unique line of high performance low energy temperature and temperature/humidity sensors, we also can provide NIST traceable certification for our sensors.

Our standard 1-year certification offers 3 temperature test points:

-20 deg. C

+5 deg. C

+20 deg. C

with a +/- 1.0 deg. C tolerance or and optional +/-0.5 deg. C tolerance.

Sensors can be sent back for re-validation or if you can’t afford to be out of service, simply and easily replaced with new validated sensors. (contact us if you require any customization to our standard validation.)

Tsensor – Temperature Sensors

The Tsensor was designed as a low cost replaceable and traceable temperature sensor.  When it’s time to revalidate, you can return them for revalidation or just plug in new Tsensors so your environmental monitoring is never down.  Cast in epoxy these sensors can withstand your toughest conditions.

Tsensor - A low cost traceable temperature sensor module

Tsensor – A low cost traceable temperature sensor module

THsensor – Humidity and Temperature Sensors

Our very unique THsensors feature state-of-the-art DDS technology to achieve high performance, very low power consumption, humidity measurement and traceable temperature measurement.

High performance DDS THsensors

High performance DDS traceable THsensors

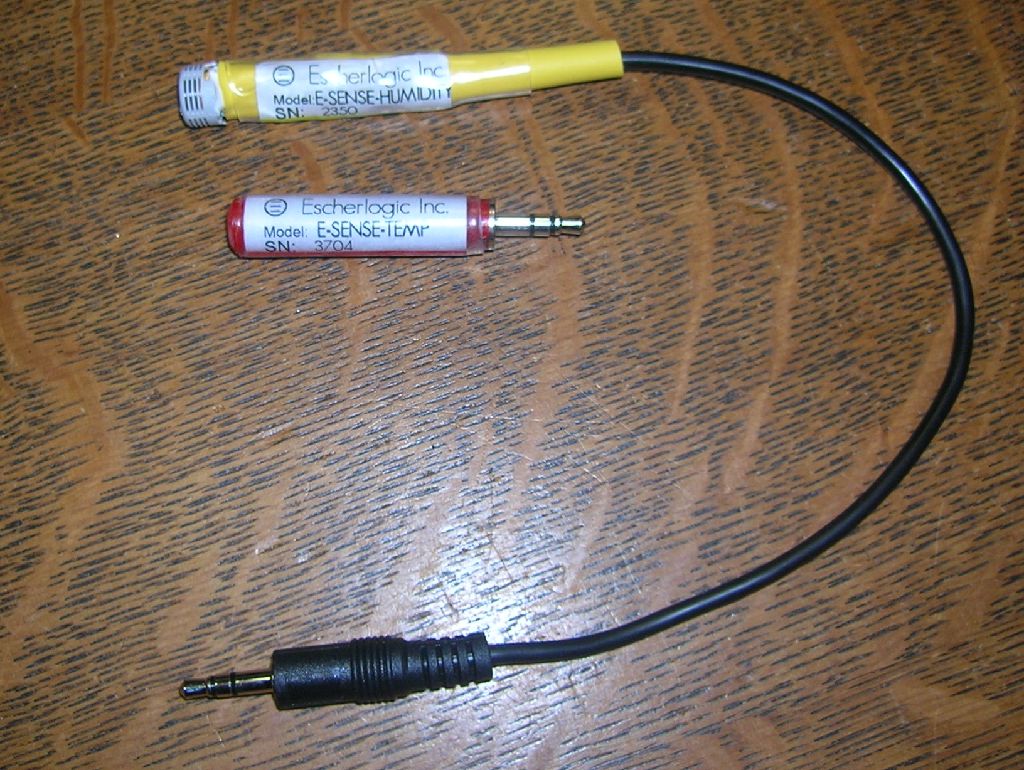

Tsensor and THsensors.

Tsensor and THsensors.



RF T/C Sensor – Explosion Proof RF Battery Powered K-Thermocouple Sensor

When you need to measure or monitor temperatures in harsh industrial environments.



Explosion Proof RF K-type T/C Sensor - Long battery life and only powered with a single AA.

Explosion Proof RF K-type T/C Sensor – Long battery life and only powered with a single AA.

VIsensor – Voltage and Current Sensors

The VIsensor was specifically designed to measure 0-24VDC and 0-24mADC making it ideal to interface with most any instrument or sensor you need to integrate.  Its very small size allows it to be placed most anywhere.  Even inside the terminal wiring space of the device you are connecting it to.  With 24 bits of resolution will provide high quality detail for any signal you measure.

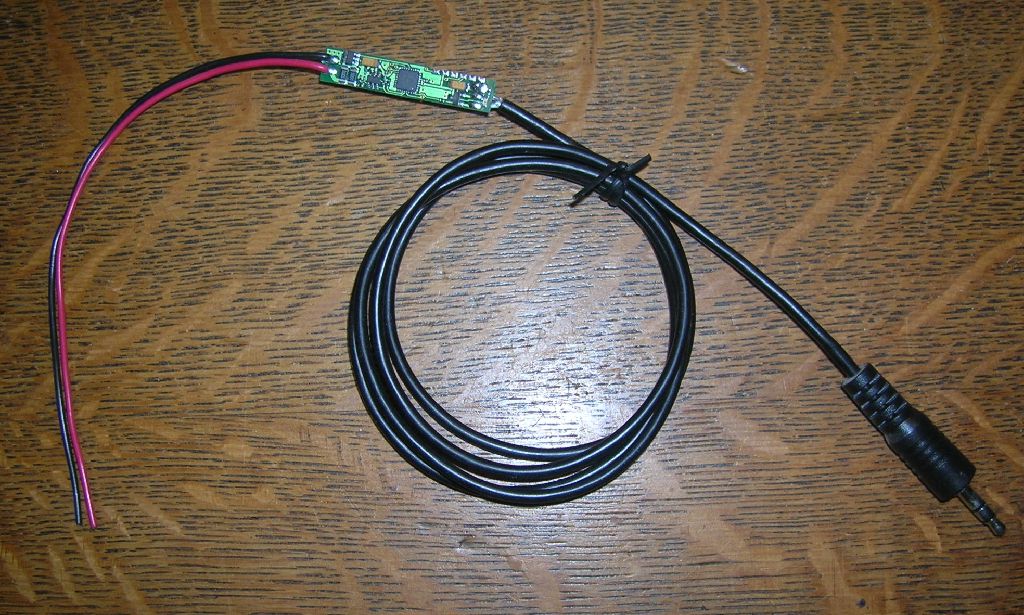

The VIsensor enables you to measure any type of voltage of current signal.

The VIsensor enables you to measure any type of voltage of current signal.

With simple electrical devices such as transformers and rectifiers, it can be used to measure large AC voltages.   Here is an example from SeNSoRNET of a 24hr plot of the single-phase main line voltage  feed to our lab.

24hr plot of 240VAC Main feeding our lab using a VIsensor and SeNSoRNET

24hr plot of 240VAC Main feeding our lab using a VIsensor and SeNSoRNET



RFAP2 – PoE/AC/DC Powered RF to Network Access Point

The RFAP2 acts as an RF data collection point for any nearby RFTX5 devices.  It can provide a web-front to view and manage all basic control for your sensors.  Its also a flexible, secure, no-configuration way to collect and route sensor data to SeNSoRNET.

RFAP2 PoE RF Access Point

RFAP2 PoE or AC/DC powered RF Access Point that can be used to collect and forward data to SeNSoRNET

Viewer – To provide a site-based display for your data

The Viewer is a hardened display featuring a powder coated steel enclosure with a *Lexan ™ window so it can withstand some rough environments.  It is designed to mount on a standard 4×4 electrical box making installation simple.  It is powered exclusively with PoE so you only need a single network cable.  This device needs NO configuration.  It simply gets its standard network settings (IP/mask/gateway) from your DHCP server and connects automatically to SeNSoRNET where you can control and customize its content.

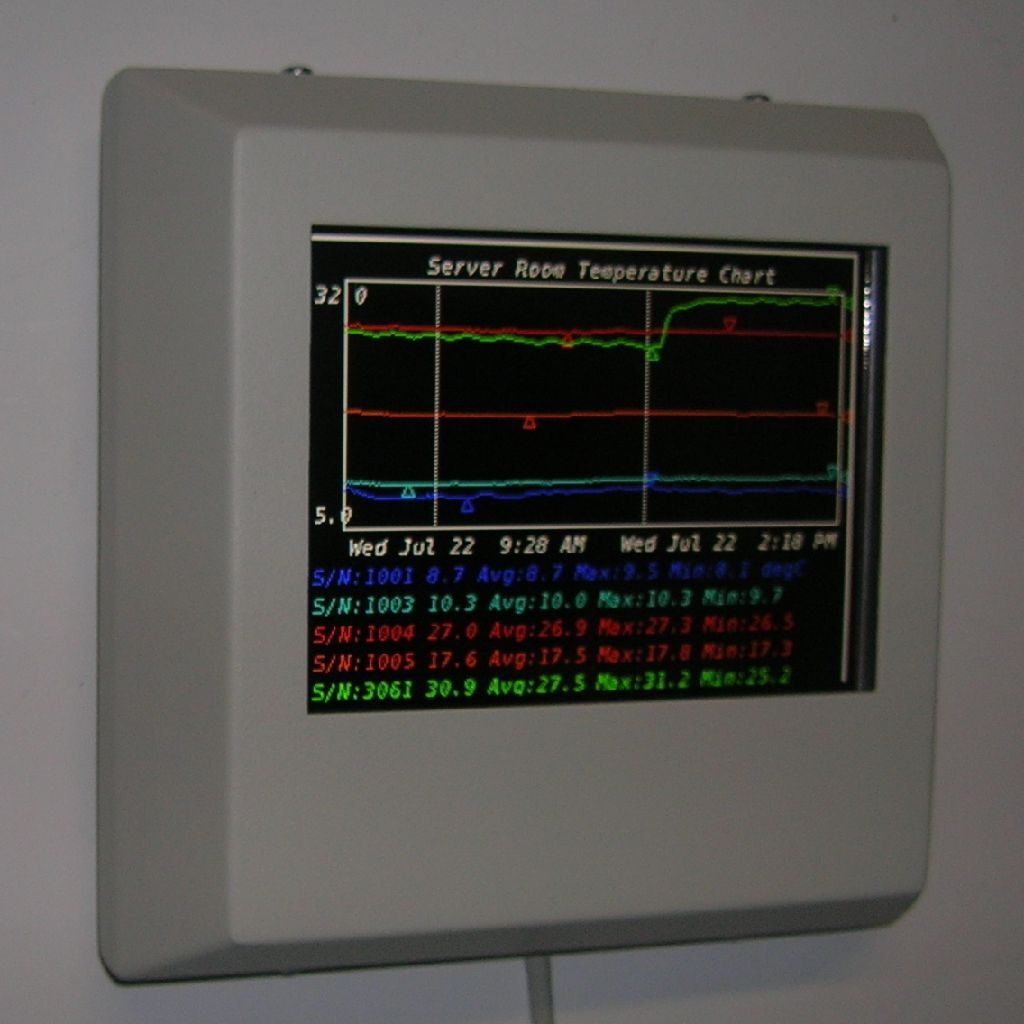

Use the Viewer to display live data from SeNSoRNET.com

Use the Viewer to display live data from SeNSoRNET.com

*Lexan is a Dupont product.
